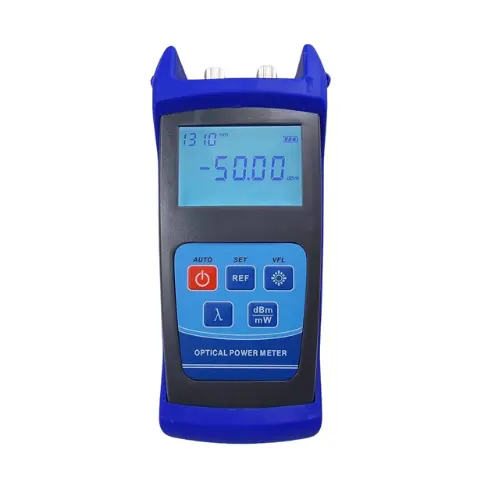

Optical Power Meter With VFL
Handheld fiber optic laser pon power meter and light sources is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fibre network.
Description
Corelink Optical Power
Meter with Laser has a compact
structure and stable performance. The instrument has 7 working
wavelengths
which totally satisfy your needs. (850nm, 980nm, 1300nm, 1310nm, 1490nm,
1550nm
and 1625nm) The CW201 Handheld Optical Power Meter can detect the
Optical
Fiber, Optical Cable, and all kinds of Passive Optical Devices.
Features:
The materials of
optical detector are all the importation.
Small power
consumption and saving power.
Display the linear
optical power and logarithm optical power.
Has a function of
measuring relative value, automatic
switching range, auto power off, and display the battery power and
charging.
Small volume, light weight, low consumption, and easy to carry.
Routing
Maintenance
Please power off after
operation. Dust-cap should be covered
and the meter be placed in a dry environment.
Battery should be
taken out if leaving unused for a long
time, for avoiding corrosion.
In order to avoid
causing the permanent damage, please use
the matching products.
Constantly cleaning of
optical adapter is recommended.
Calibration is needed
per year to guarantee good accuracy.
|
Parameter
|
Unit
|
Value
|
|
Model
|
|
CW201
|
|
Operating
Wavelength |
nm
|
850,
980, 1300, 1310, 1490, 1550, 1625 |
|
PD
Material |
|
InGaAs
|
|
PD
Sensitive Area |
mm
|
0.3
|
|
Measurement
Arrange |
dBm
|
+30
~ -50 @1550nm |
|
Accuracy
|
|
5%
|
|
Unit
|
|
dB/dBm/xW
|
|
Resolution
|
|
0.01
|
|
Refresh
Rate |
Hz
|
20
|
|
Power
Adapter |
|
Input:AC
100-240V 50/60Hz Output DC 5V/1A |
|
Operating
Temperature |
℃
|
-10
~ +50 |
|
Storage
Temperature |
℃
|
-20
~ 70 |
|
Storage
Humidity |
|
90%RH
|
|
Fiber
Adapter |
|
FC/SC/LC/2.5mm
Universal/1.25mm Universal |
|
Dimension
|
mm
|
147x70x23(LWH)
|
|
Weight
|
g
|
250
(including battery, but no other accessories) |
